C6151
C6151

C6151

UGC DOR7647983
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$112.59 CAD - $112.59 CAD
$112.59 CAD
$112.59 CAD - $112.59 CAD
$112.59 CAD

Vendu en lots de : 1

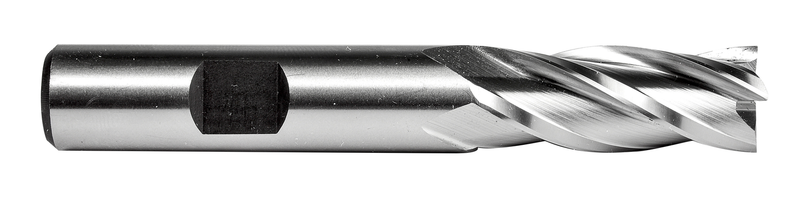

Fraise en bout de longueur standard à 4 dents, diamètre 1" avec une longueur de coupe de 2" et une longueur totale de 4,1/2", conforme à la norme ANSI avec une queue Weldon de 1", en HSS avec finition brillante, hélice de 30° pour le surfaçage d'épaulement, l'usinage de rainures et l'interpolation hélicoïdale dans les aciers à usinabilité améliorée et les aciers au carbone non alliés, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6151
GradeLumineux
Product Number7647983
Product FamilyC615
Insert Geometry
Depth of Cut Max — mm (APMX)50.8 mm

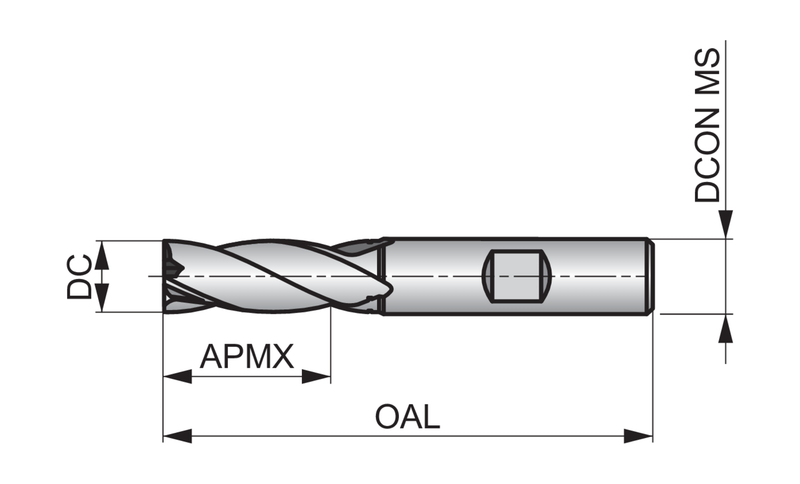

Dimensions
Cutting Diameter — in (DC)1.0"
Cutting Diameter — mm (DC)25.4 mm
Cutting Diameter — Fractional1"
Overall Length — mm (OAL)114.3 mm
Connection Dia. — in (DCON)1.0"
Connection Dia. — mm (DCON)25.4 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankTige cylindrique
StandardANSI
Reference Numbers
EDP Number7647983
EAN7320760844984
File Type Download
C6151 — Line Drawing PDF Download
