C6181/8
C6181/8

C6181/8

UGC DOR7648008
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$47.67 CAD - $47.67 CAD
$47.67 CAD
$47.67 CAD - $47.67 CAD
$47.67 CAD

Vendu en lots de : 1

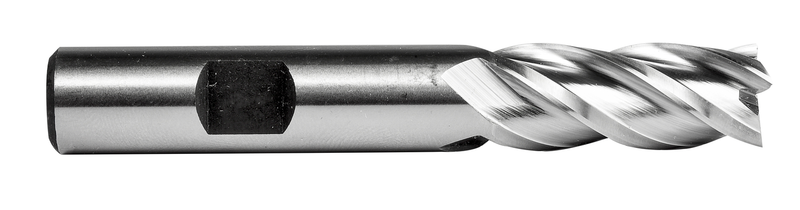

Fraise en bout de longueur normale à 4 cannelures, diamètre 1/8" avec une longueur de coupe de 3/8" et une longueur totale de 2.5/16", conforme à la norme ANSI avec une queue Weldon de 3/8", HSS-E à base de cobalt avec finition brillante, hélice à 30° pour le fraisage d'épaulement, le fraisage de rainures et le fraisage en rampe dans l'acier au carbone à usinage libre et l'acier au carbone ordinaire, ainsi que le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6181/8
GradeLumineux
Product Number7648008
Product FamilyC618
Insert Geometry
Depth of Cut Max — mm (APMX)9.53 mm

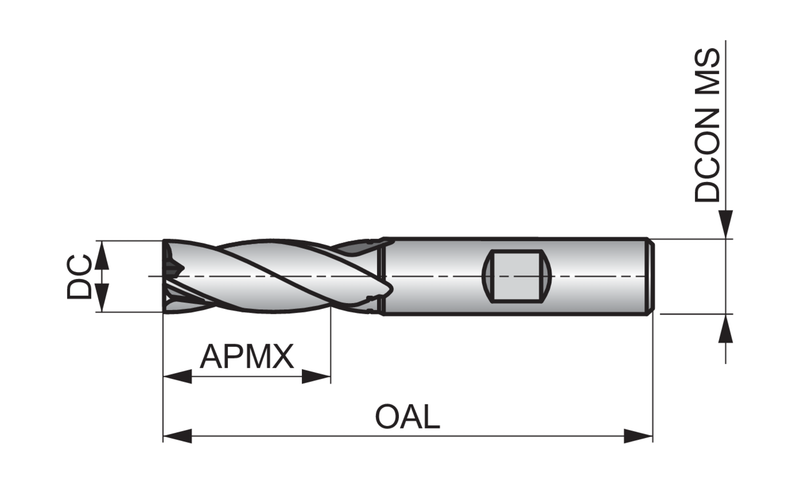

Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)2.3125"
Overall Length — mm (OAL)58.74 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7648008
EAN7320760845233
File Type Download
C6181/8 — Line Drawing PDF Download
