C6183/16
C6183/16

C6183/16

UGC DOR7648009
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$41.07 CAD - $41.07 CAD
$41.07 CAD
$41.07 CAD - $41.07 CAD
$41.07 CAD

Vendu en lots de : 1

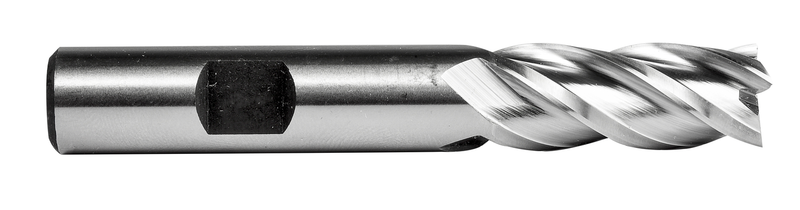

Fraise en bout de longueur standard à 4 dents, diamètre 3/16" avec une longueur de coupe de 1/2" et une longueur totale de 2.3/8", selon la norme ANSI, avec une queue Weldon de 3/8", en HSS-E à base de cobalt avec finition brillante, hélice de 30° pour le fraisage d'épaulement, le fraisage de rainures et le fraisage en rampe dans les aciers de décolletage et les aciers au carbone non alliés ainsi que le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6183/16
GradeLumineux
Product Number7648009
Product FamilyC618
Insert Geometry
Depth of Cut Max — mm (APMX)12.7 mm

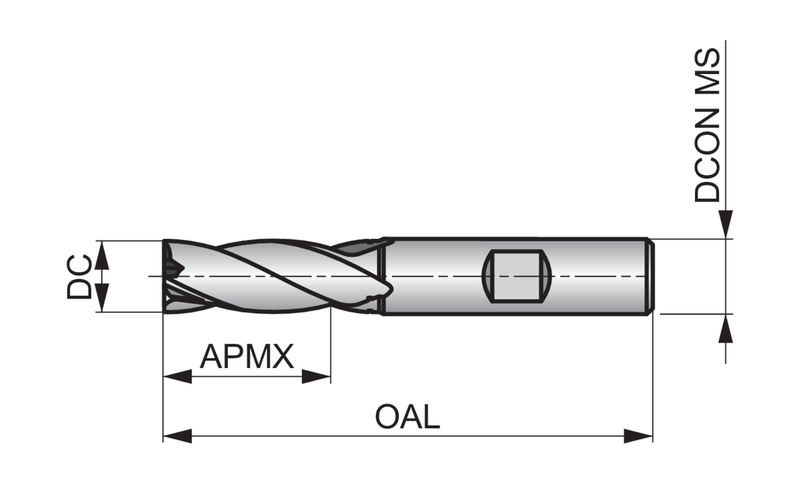

Dimensions
Cutting Diameter — in (DC)0.1875"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)2.375"
Overall Length — mm (OAL)60.33 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankTige cylindrique
StandardANSI
Reference Numbers
EDP Number7648009
EAN7320760845240
File Type Download
C6183/16 — Line Drawing PDF Download
