C6181/4
C6181/4

C6181/4

UGC DOR7648010
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$41.07 CAD - $41.07 CAD
$41.07 CAD
$41.07 CAD - $41.07 CAD
$41.07 CAD

Vendu en lots de : 1

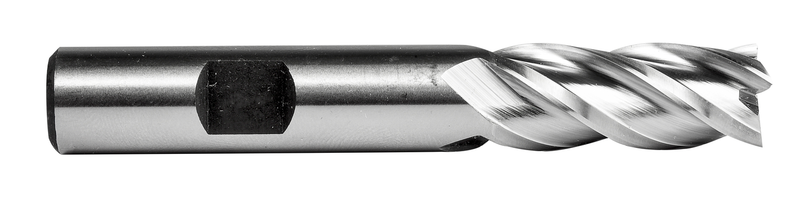

Fraise en bout de longueur standard à 4 dents, diamètre 1/4" avec une longueur de coupe de 5/8" et une longueur totale de 2.7/16", selon la norme ANSI avec une queue Weldon de 3/8", HSS-E à base de cobalt avec finition brillante, hélice de 30° pour le fraisage d'épaulements, le fraisage de rainures et le surfaçage en pente dans l'acier au carbone à usinage libre et l'acier au carbone ordinaire, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6181/4
GradeLumineux
Product Number7648010
Product FamilyC618
Insert Geometry
Depth of Cut Max — mm (APMX)15.88 mm

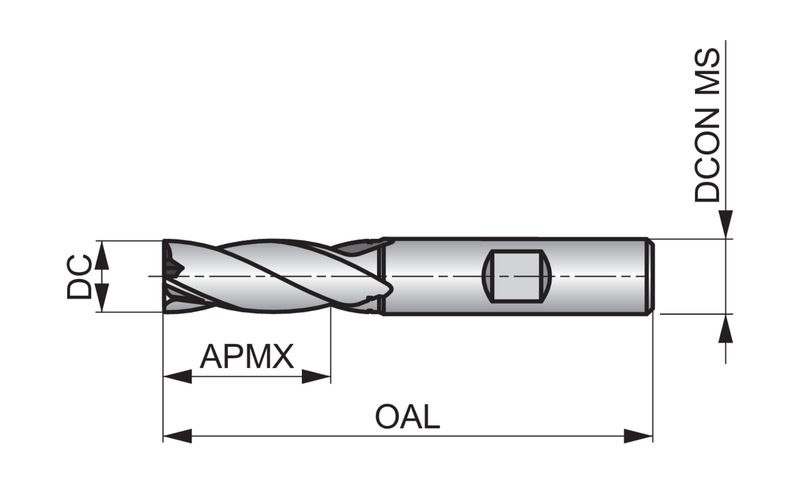

Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)2.4375"
Overall Length — mm (OAL)61.91 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7648010
EAN7320760845257
File Type Download
C6181/4 — Line Drawing PDF Download
