C6183/8
C6183/8

C6183/8

UGC DOR7648012
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$42.76 CAD - $42.76 CAD
$42.76 CAD
$42.76 CAD - $42.76 CAD
$42.76 CAD

Vendu en lots de : 1

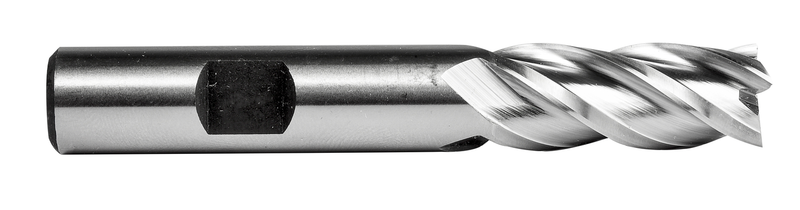

Fraise à 4 dents de longueur normale, diamètre 3/8" avec une longueur de coupe de 3/4" et une longueur totale de 2.1/2", conforme à la norme ANSI avec une queue Weldon de 3/8", en HSS-E à base de cobalt avec finition brillante, hélice de 30° pour le fraisage d'épaulement, le fraisage de rainures et le fraisage en rampe dans les aciers à usinage libre et au carbone non allié, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6183/8
GradeLumineux
Product Number7648012
Product FamilyC618
Insert Geometry
Depth of Cut Max — mm (APMX)19.05 mm
Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7648012
EAN7320760845271
File Type Download

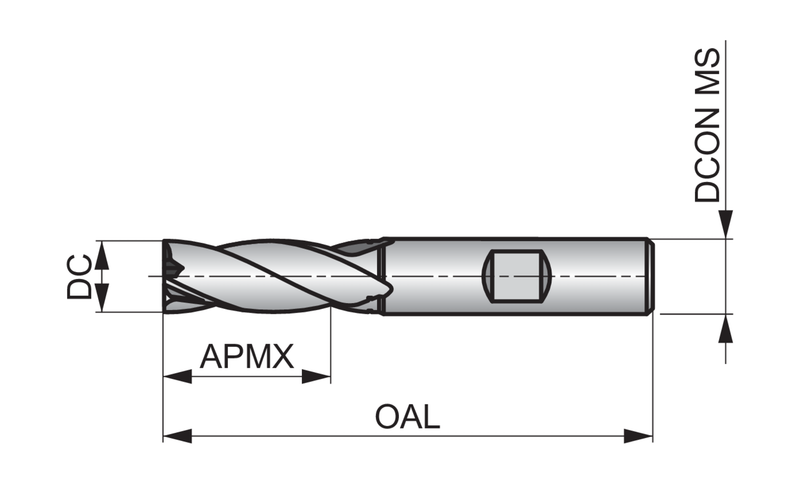

C6183/8 — Line Drawing PDF Download
