C6183/4
C6183/4

C6183/4

UGC DOR7648015
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$117.87 CAD - $117.87 CAD
$117.87 CAD
$117.87 CAD - $117.87 CAD
$117.87 CAD

Vendu en lots de : 1

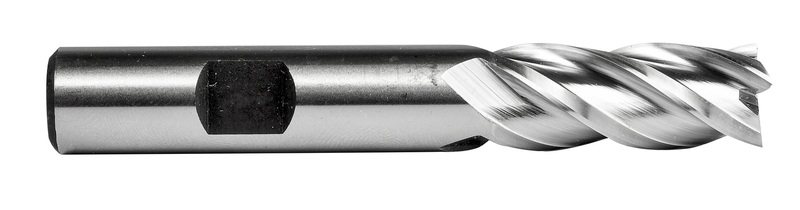

Fraise en bout de longueur standard à 4 dents, diamètre 3/4" avec une longueur de coupe de 1,5/8" et une longueur totale de 3,7/8", conforme à la norme ANSI avec une queue Weldon de 3/4", HSS-E à base de cobalt avec finition brillante, hélice de 30° pour le fraisage d'épaulements, le fraisage de rainures et le fraisage en plongée dans l'acier au carbone à usinage libre et ordinaire, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6183/4
GradeLumineux
Product Number7648015
Product FamilyC618
Insert Geometry
Depth of Cut Max — mm (APMX)41.28 mm

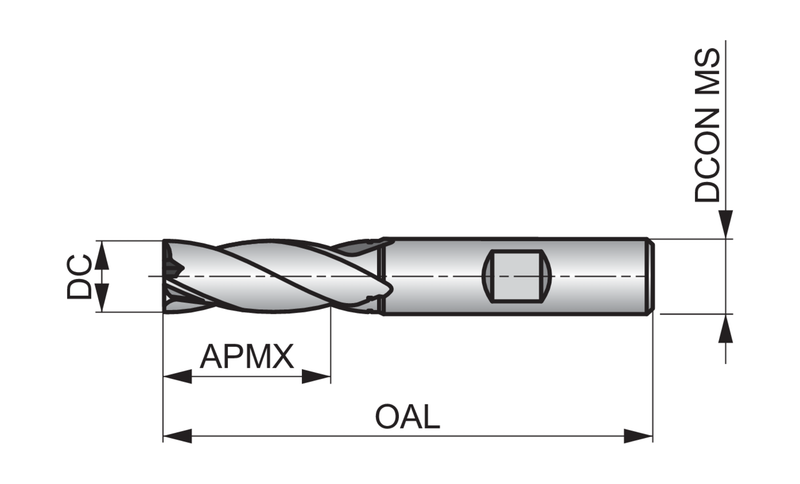

Dimensions
Cutting Diameter — in (DC)0.75"
Cutting Diameter — mm (DC)19.05 mm
Cutting Diameter — Fractional3/4
Overall Length — in (OAL)3.875"
Overall Length — mm (OAL)98.43 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7648015
EAN7320760845301
File Type Download
C6183/4 — Line Drawing PDF Download
