C6181
C6181

C6181

UGC DOR7648016
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$184.47 CAD - $184.47 CAD
$184.47 CAD
$184.47 CAD - $184.47 CAD
$184.47 CAD

Vendu en lots de : 1

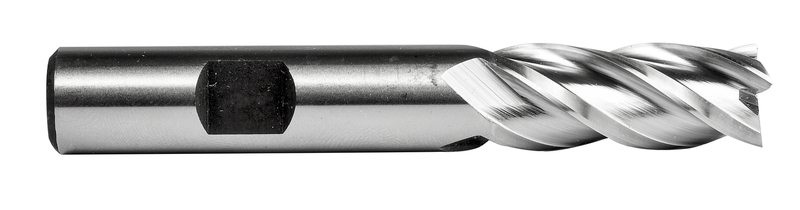

Fraise en bout de longueur standard à 4 dents, diamètre 1" avec une longueur de coupe de 2" et une longueur totale de 4,1/2", selon la norme ANSI avec une queue Weldon de 1", en HSS-E à base de cobalt avec finition brillante, hélice de 30° pour le fraisage d'épaulements, le fraisage de rainures et le fraisage en rampe dans l'acier de décolletage et l'acier au carbone non allié et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C6181
GradeLumineux
Product Number7648016
Product FamilyC618

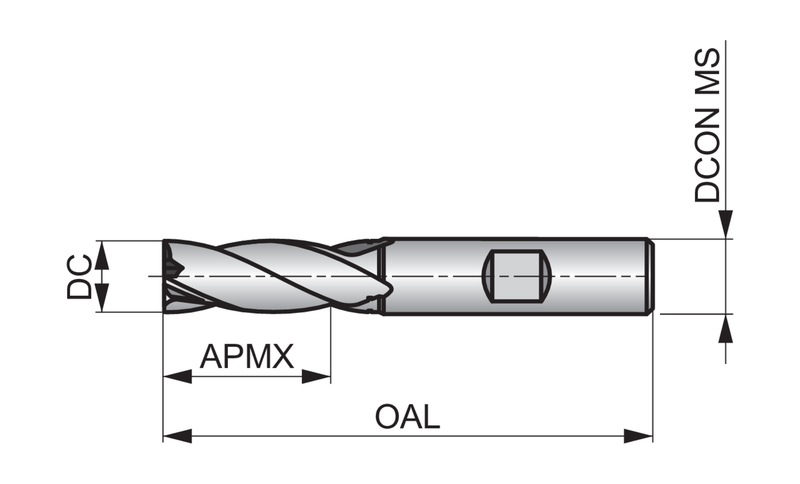

Insert Geometry
Depth of Cut Max — mm (APMX)50.8 mm
Dimensions
Cutting Diameter — in (DC)1.0"
Cutting Diameter — mm (DC)25.4 mm
Cutting Diameter — Fractional1"
Overall Length — in (OAL)4.5"
Overall Length — mm (OAL)114.3 mm
Connection Dia. — in (DCON)1.0"
Connection Dia. — mm (DCON)25.4 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardANSI
Reference Numbers
EDP Number7648016
EAN7320760845318
File Type Download
C6181 — Line Drawing PDF Download
