S1061/4
S1061/4

S1061/4

UGC DOR7648490
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$32.09 CAD - $32.09 CAD
$32.09 CAD
$32.09 CAD - $32.09 CAD
$32.09 CAD

Vendu en lots de : 1

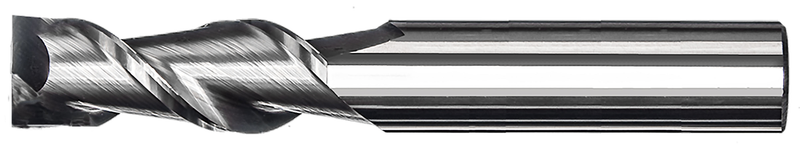

Fraise en bout de longueur normale, 2 dents, diamètre 1/4" avec une longueur de coupe de 1" et une longueur totale de 2.1/2", selon la norme DORMER avec une queue cylindrique de 1/4", en carbure monobloc avec finition brillante, hélice à 45° pour le fraisage d'épaulements, le fraisage de rainures et l'interpolation hélicoïdale dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1061/4
GradeLumineux
Product Number7648490
Product FamilyS106
Insert Geometry
Depth of Cut Max — in (APMX)1.0"
Depth of Cut Max — mm (APMX)25.4 mm
Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Number of Flutes (NOF)2
Helix Angle (FHA)45.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648490
EAN7320760845370
File Type Download
S1061/4 — Line Drawing PDF Download
