S1063/8
S1063/8

S1063/8

UGC DOR7648492
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$47.14 CAD - $47.14 CAD
$47.14 CAD
$47.14 CAD - $47.14 CAD
$47.14 CAD

Vendu en lots de : 1

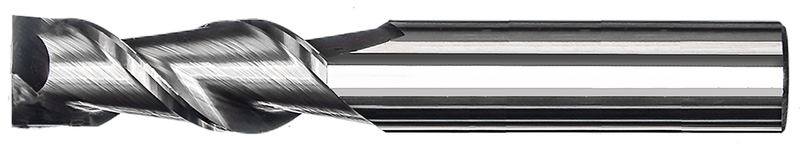

Fraise 2 dents de longueur normale, diamètre 3/8" avec une longueur de coupe de 1" et une longueur totale de 2.1/2", selon la norme DORMER avec une queue cylindrique de 3/8", en carbure monobloc, finition brillante, hélice à 45° pour fraisage d'épaulement, fraisage de rainures et interpolation hélicoïdale dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1063/8
GradeLumineux
Product Number7648492
Product FamilyS106
Insert Geometry
Depth of Cut Max — mm (APMX)25.4 mm
Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)2
Helix Angle (FHA)45.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648492
EAN7320760845394
File Type Download
S1063/8 — Line Drawing PDF Download
