S1065/8
S1065/8

S1065/8

UGC DOR7648494
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$145.36 CAD - $145.36 CAD
$145.36 CAD
$145.36 CAD - $145.36 CAD
$145.36 CAD

Vendu en lots de : 1

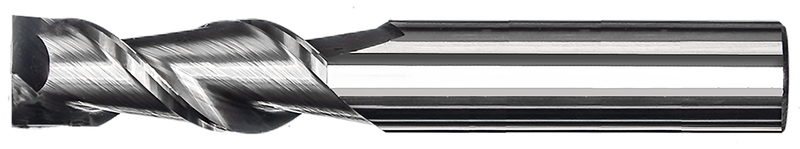

Fraise en bout de longueur standard à 2 arêtes, diamètre 5/8" avec une longueur de coupe de 1.5/8" et une longueur totale de 3.1/2", conforme à la norme DORMER avec une queue cylindrique de 5/8", en carbure monobloc avec finition brillante, hélice de 45° pour le surfaçage, l'usinage de rainures et le fraisage en rampe dans les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1065/8
GradeLumineux
Product Number7648494
Product FamilyS106
Insert Geometry
Depth of Cut Max — mm (APMX)41.28 mm
Dimensions
Cutting Diameter — in (DC)0.625"
Cutting Diameter — mm (DC)15.88 mm
Cutting Diameter — Fractional5/8
Overall Length — in (OAL)3.5"
Overall Length — mm (OAL)88.9 mm
Connection Dia. — in (DCON)0.625"
Connection Dia. — mm (DCON)15.88 mm
Number of Flutes (NOF)2
Helix Angle (FHA)45.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648494
EAN7320760845417
File Type Download
S1065/8 — Line Drawing PDF Download
