S1085/64
S1085/64

S1085/64

UGC DOR7648527
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.16 CAD - $17.16 CAD
$17.16 CAD
$17.16 CAD - $17.16 CAD
$17.16 CAD

Vendu en lots de : 1

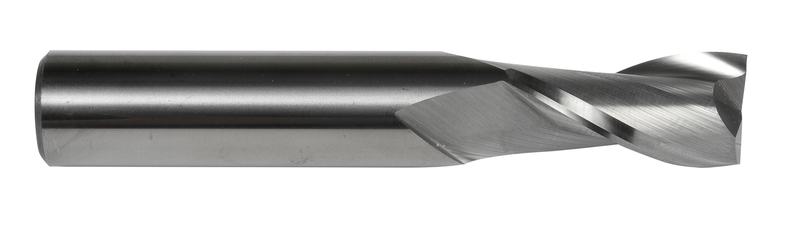

Fraise en bout longueur normale à 2 arêtes, diamètre 5/64" avec une longueur de coupe de 1/4" et une longueur totale de 1,1/2", conforme à la norme DORMER avec une queue cylindrique de 1/8", en carbure monobloc, finition brillante, hélice de 30° pour le fraisage de rainures dans l'acier et l'acier moulé, la fonte malléable, la fonte ductile et à graphite compacté, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1085/64
GradeLumineux
Product Number7648527
Product FamilyS108
Insert Geometry
Depth of Cut Max — mm (APMX)6.35 mm
Dimensions
Cutting Diameter — in (DC)0.0781"
Cutting Diameter — mm (DC)1.98 mm
Cutting Diameter — Fractional5/64
Overall Length — in (OAL)1.5"
Overall Length — mm (OAL)38.1 mm
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648527
EAN7320760845745
File Type Download
S1085/64 — Line Drawing PDF Download
