S1083/32
S1083/32

S1083/32

UGC DOR7648528
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.04 CAD - $15.04 CAD
$15.04 CAD
$15.04 CAD - $15.04 CAD
$15.04 CAD

Vendu en lots de : 1

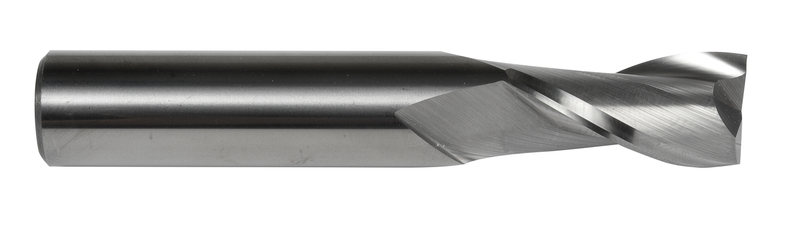

Fraise 2 dents standard, diamètre 3/32" avec une longueur de coupe de 3/8" et une longueur totale de 1.1/2", conforme à la norme DORMER avec une queue cylindrique de 1/8", carbure monobloc, finition brillante, hélice de 30° pour le fraisage de rainures dans l'acier et l'acier moulé, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1083/32
GradeLumineux
Product Number7648528
Product FamilyS108
Insert Geometry
Depth of Cut Max — mm (APMX)9.53 mm
Dimensions
Cutting Diameter — in (DC)0.0938"
Cutting Diameter — mm (DC)2.38 mm
Cutting Diameter — Fractional3/32
Overall Length — in (OAL)1.5"
Overall Length — mm (OAL)38.1 mm
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648528
EAN7320760845752
File Type Download
S1083/32 — Line Drawing PDF Download
