S10811/64
S10811/64

S10811/64

UGC DOR7648532
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.14 CAD - $22.14 CAD
$22.14 CAD
$22.14 CAD - $22.14 CAD
$22.14 CAD

Vendu en lots de : 1

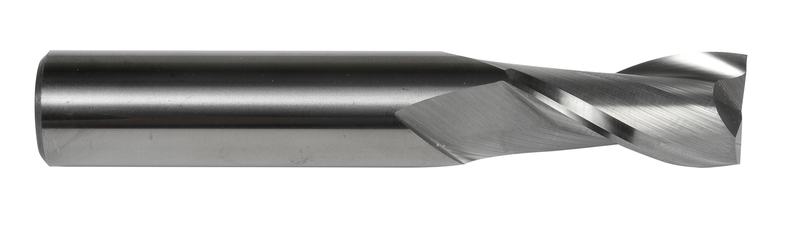

Fraise en bout de longueur normale à 2 arêtes de coupe, diamètre 11/64" avec longueur de coupe de 9/16" et longueur totale de 2", selon la norme DORMER, avec queue lisse de 3/16", carbure monobloc avec finition brillante, hélice de 30° pour le fraisage de rainures dans l'acier et l'acier moulé, la fonte malléable, la fonte ductile et la fonte à graphite compacté, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S10811/64
GradeLumineux
Product Number7648532
Product FamilyS108
Insert Geometry
Depth of Cut Max — mm (APMX)14.29 mm
Dimensions
Cutting Diameter — in (DC)0.1719"
Cutting Diameter — mm (DC)4.37 mm
Cutting Diameter — Fractional11/64
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Connection Dia. — in (DCON)0.1875"
Connection Dia. — mm (DCON)4.76 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648532
EAN7320760845790
File Type Download
S10811/64 — Line Drawing PDF Download
