S1087/32
S1087/32

S1087/32

UGC DOR7648534
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.06 CAD - $27.06 CAD
$27.06 CAD
$27.06 CAD - $27.06 CAD
$27.06 CAD

Vendu en lots de : 1

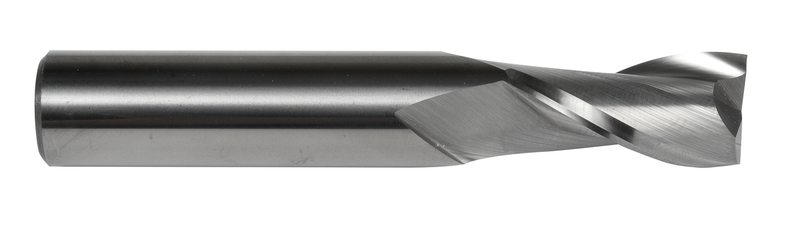

Fraise en bout de longueur normale à 2 coupes, diamètre 7/32" avec une longueur de coupe de 5/8" et une longueur totale de 2.1/2", selon la norme DORMER avec une queue cylindrique de 1/4", en carbure monobloc à finition brillante, hélice à 30° pour le fraisage de rainures dans l'acier et l'acier moulé, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1087/32
GradeLumineux
Product Number7648534
Product FamilyS108
Insert Geometry
Depth of Cut Max — mm (APMX)15.88 mm
Dimensions
Cutting Diameter — in (DC)0.2188"
Cutting Diameter — mm (DC)5.56 mm
Cutting Diameter — Fractional7/32
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648534
EAN7320760845813
File Type Download

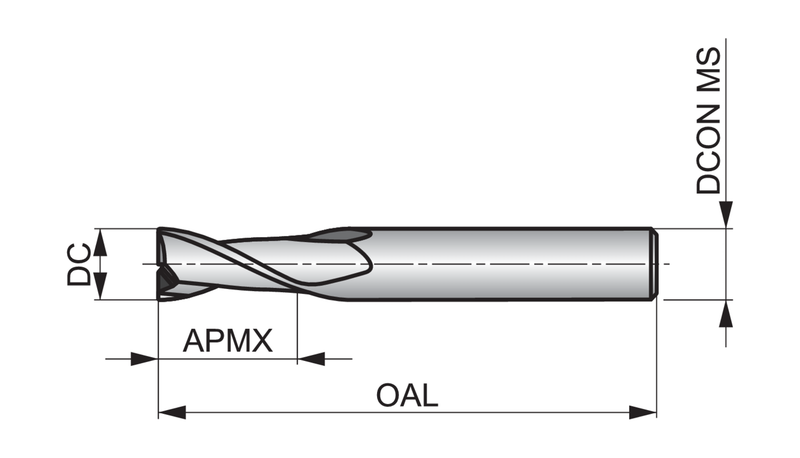

S1087/32 — Line Drawing PDF Download
