S1085/16
S1085/16

S1085/16

UGC DOR7648536
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$32.83 CAD - $32.83 CAD
$32.83 CAD
$32.83 CAD - $32.83 CAD
$32.83 CAD

Vendu en lots de : 1

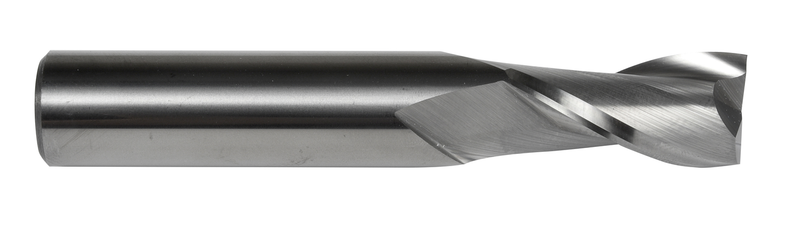

Fraise 2 dents de longueur normale, diamètre 5/16" avec une longueur de coupe de 7/8" et une longueur totale de 2.1/2", selon la norme DORMER avec une queue cylindrique de 5/16", en carbure monobloc, finition brillante, hélice 30° pour le fraisage de rainures dans l'acier et l'acier moulé, la fonte malléable, ductile et à graphite sphéroïdal et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1085/16
GradeLumineux
Product Number7648536
Product FamilyS108
Insert Geometry
Depth of Cut Max — mm (APMX)22.23 mm
Dimensions
Cutting Diameter — in (DC)0.3125"
Cutting Diameter — mm (DC)7.94 mm
Cutting Diameter — Fractional16 mai
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Connection Dia. — in (DCON)0.3125"
Connection Dia. — mm (DCON)7.94 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648536
EAN7320760845837
File Type Download
S1085/16 — Line Drawing PDF Download
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
