S1089/16
S1089/16

S1089/16

UGC DOR7648540
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$118.40 CAD - $118.40 CAD
$118.40 CAD
$118.40 CAD - $118.40 CAD
$118.40 CAD

Vendu en lots de : 1

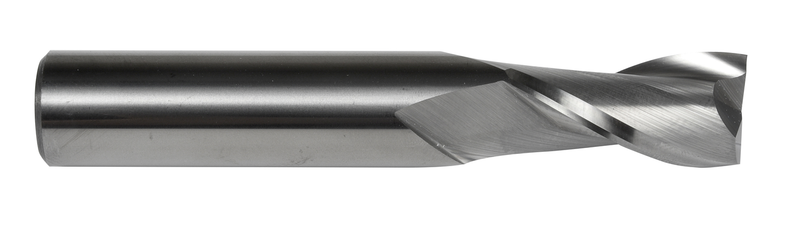

Fraise 2 dents de longueur normale, diamètre 9/16" avec une longueur de coupe de 1,1/4" et une longueur totale de 3,1/2", selon la norme DORMER avec une queue cylindrique de 9/16", carbure monobloc finition brillante, hélice 30° pour le fraisage de rainures dans l'acier et l'acier moulé, la fonte malléable, ductile et à graphite sphéroïdal et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1089/16
GradeLumineux
Product Number7648540
Product FamilyS108
Insert Geometry
Depth of Cut Max — mm (APMX)31.75 mm
Dimensions
Cutting Diameter — in (DC)0.5625"
Cutting Diameter — mm (DC)14.29 mm
Cutting Diameter — Fractional16/9
Overall Length — in (OAL)3.5"
Overall Length — mm (OAL)88.9 mm
Connection Dia. — in (DCON)0.5625"
Connection Dia. — mm (DCON)14.29 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648540
EAN7320760845875
File Type Download
S1089/16 — Line Drawing PDF Download
