S1085/8
S1085/8

S1085/8

UGC DOR7648541
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$126.33 CAD - $126.33 CAD
$126.33 CAD
$126.33 CAD - $126.33 CAD
$126.33 CAD

Vendu en lots de : 1

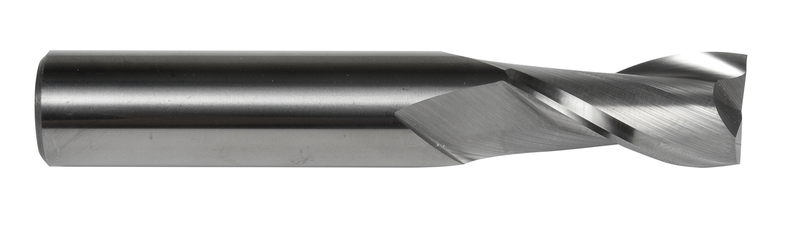

Fraise en bout de longueur normale à 2 arêtes, diamètre de 5/8" avec une longueur de coupe de 1.1/4" et une longueur totale de 3.1/2", selon la norme DORMER avec une queue cylindrique de 5/8", en carbure monobloc avec finition brillante, hélice de 30° pour le fraisage de rainures dans l'acier et l'acier moulé, la fonte malléable, la fonte ductile et la fonte à graphite compacté, et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1085/8
GradeLumineux
Product Number7648541
Product FamilyS108
Insert Geometry
Depth of Cut Max — mm (APMX)31.75 mm
Dimensions
Cutting Diameter — in (DC)0.625"
Cutting Diameter — mm (DC)15.88 mm
Cutting Diameter — Fractional5/8
Overall Length — in (OAL)3.5"
Overall Length — mm (OAL)88.9 mm
Connection Dia. — in (DCON)0.625"
Connection Dia. — mm (DCON)15.88 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648541
EAN7320760845882
File Type Download
S1085/8 — Line Drawing PDF Download
