S1083/4
S1083/4

S1083/4

UGC DOR7648542
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$185.53 CAD - $185.53 CAD
$185.53 CAD
$185.53 CAD - $185.53 CAD
$185.53 CAD

Vendu en lots de : 1

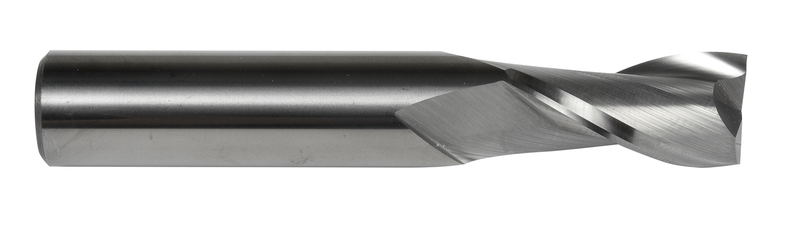

Fraise en bout longueur normale à 2 arêtes, diamètre 3/4" avec longueur de coupe 1.1/2" et longueur totale 4", selon la norme DORMER avec une queue cylindrique 3/4", en carbure monobloc finition brillante, hélice 30° pour le fraisage de rainures dans l'acier et l'acier moulé, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1083/4
GradeLumineux
Product Number7648542
Product FamilyS108
Insert Geometry
Depth of Cut Max — mm (APMX)38.1 mm
Dimensions
Cutting Diameter — in (DC)0.75"
Cutting Diameter — mm (DC)19.05 mm
Cutting Diameter — Fractional3/4
Overall Length — in (OAL)4.0"
Overall Length — mm (OAL)101.6 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648542
EAN7320760845899
File Type Download
S1083/4 — Line Drawing PDF Download
