S2083/16
S2083/16

S2083/16

UGC DOR7648549
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.29 CAD - $24.29 CAD
$24.29 CAD
$24.29 CAD - $24.29 CAD
$24.29 CAD

Vendu en lots de : 1

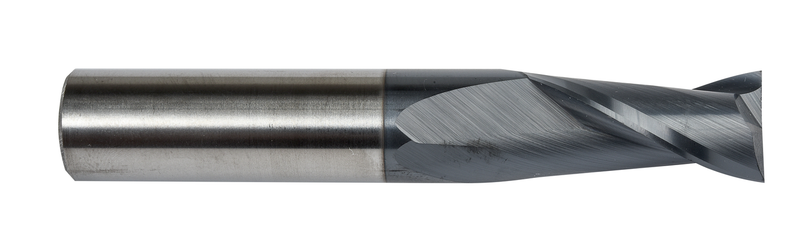

Fraise en bout de longueur normale à 2 arêtes, diamètre 3/16" avec une longueur de coupe de 5/8" et une longueur totale de 2", conforme à la norme DORMER avec une queue cylindrique de 3/16", en carbure monobloc avec revêtement TiAlN, hélice à 30° pour le fraisage de rainures dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique et la fonte malléable, nodulaire et à graphite compacté

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2083/16
GradeTiAlN
Product Number7648549
Product FamilyS208
Insert Geometry
Depth of Cut Max — mm (APMX)15.88 mm
Dimensions
Cutting Diameter — in (DC)0.1875"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Connection Dia. — in (DCON)0.1875"
Connection Dia. — mm (DCON)4.76 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648549
EAN7320760845967
File Type Download
S2083/16 — Line Drawing PDF Download
