S2087/32
S2087/32

S2087/32

UGC DOR7648550
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.00 CAD - $37.00 CAD
$37.00 CAD
$37.00 CAD - $37.00 CAD
$37.00 CAD

Vendu en lots de : 1

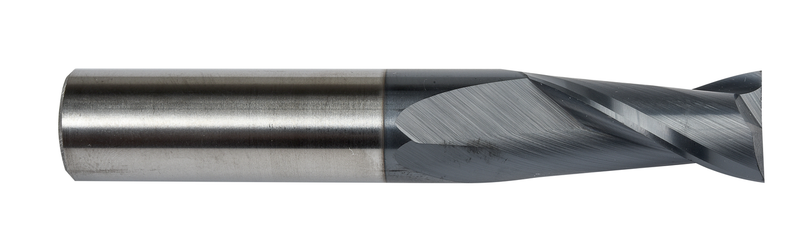

Fraise à queue cylindrique de longueur normale à 2 arêtes, diamètre 7/32" avec longueur de coupe de 5/8" et longueur totale de 2.1/2", selon la norme DORMER avec une queue cylindrique de 1/4", en carbure monobloc avec revêtement TiAlN, hélice de 30° pour le fraisage de rainures dans l'acier et l'acier moulé, les aciers inoxydables ferritiques, martensitiques et austénitiques et la fonte malléable, ductile et à graphite compacté

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2087/32
GradeTiAlN
Product Number7648550
Product FamilyS208
Insert Geometry
Depth of Cut Max — mm (APMX)15.88 mm
Dimensions
Cutting Diameter — in (DC)0.2188"
Cutting Diameter — mm (DC)5.56 mm
Cutting Diameter — Fractional7/32
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648550
EAN7320760845974
File Type Download

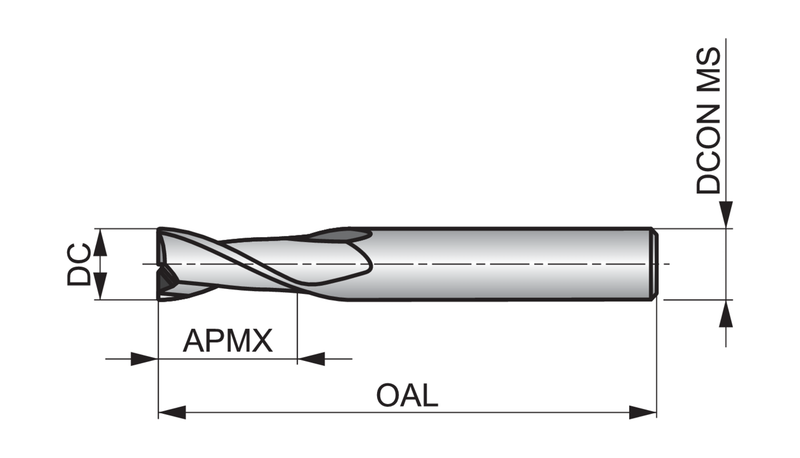

S2087/32 — Line Drawing PDF Download
