S1092.0
S1092.0

S1092.0

UGC DOR7648558
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.60 CAD - $16.60 CAD
$16.60 CAD
$16.60 CAD - $16.60 CAD
$16.60 CAD

Vendu en lots de : 1

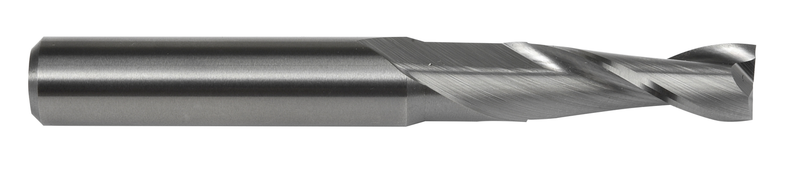

Fraise en bout longueur normale à 2 arêtes, diamètre 2 mm avec une longueur de coupe de 6 mm et une longueur totale de 38 mm, selon la norme DORMER avec une queue cylindrique de 3 mm, en carbure monobloc finition brillante, hélice 30° pour le fraisage de rainures dans l'acier et l'acier moulé, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1092.0
GradeLumineux
Product Number7648558
Product FamilyS109
Insert Geometry
Depth of Cut Max — in (APMX)0.2362"
Depth of Cut Max — mm (APMX)6.0 mm
Dimensions
Cutting Diameter — in (DC)0.0787"
Cutting Diameter — mm (DC)2.0 mm
Overall Length — in (OAL)1.4961"
Overall Length — mm (OAL)38.0 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648558
EAN7320760846056
File Type Download
S1092.0 — Line Drawing PDF Download
