S1092.5
S1092.5

S1092.5

UGC DOR7648559
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.04 CAD - $17.04 CAD
$17.04 CAD
$17.04 CAD - $17.04 CAD
$17.04 CAD

Vendu en lots de : 1

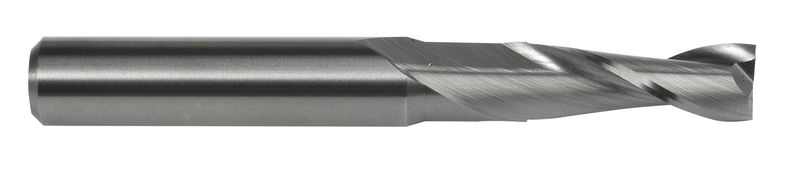

Fraise en bout longueur standard avec 2 goujures, diamètre 2,5mm, longueur de coupe 7mm et longueur totale 38mm, selon le standard DORMER avec une queue cylindrique 3mm, carbure monobloc finition brillante, hélice 30° pour le fraisage de rainures dans l'acier et l'acier moulé, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1092.5
GradeLumineux
Product Number7648559
Product FamilyS109
Insert Geometry
Depth of Cut Max — in (APMX)0.2756"
Depth of Cut Max — mm (APMX)7.0 mm
Dimensions
Cutting Diameter — in (DC)0.0984"
Cutting Diameter — mm (DC)2.5 mm
Overall Length — in (OAL)1.4961"
Overall Length — mm (OAL)38.0 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648559
EAN7320760846063
File Type Download
S1092.5 — Line Drawing PDF Download
