S1094.0
S1094.0

S1094.0

UGC DOR7648561
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.36 CAD - $20.36 CAD
$20.36 CAD
$20.36 CAD - $20.36 CAD
$20.36 CAD

Vendu en lots de : 1

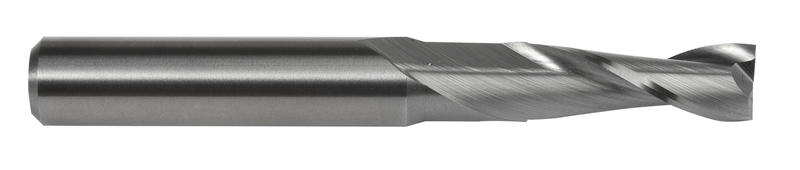

Fraise en bout de longueur normale à 2 arêtes, diamètre 4 mm avec une longueur de coupe de 14 mm et une longueur totale de 50 mm, conforme à la norme DORMER avec une queue cylindrique de 4 mm, en carbure monobloc avec finition brillante, hélice de 30° pour le fraisage de rainures dans l'acier et l'acier moulé, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1094.0
GradeLumineux
Product Number7648561
Product FamilyS109
Insert Geometry
Depth of Cut Max — in (APMX)0.5512"
Depth of Cut Max — mm (APMX)14.0 mm
Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648561
EAN7320760846087
File Type Download
S1094.0 — Line Drawing PDF Download
