S1095.0
S1095.0

S1095.0

UGC DOR7648563
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.03 CAD - $25.03 CAD
$25.03 CAD
$25.03 CAD - $25.03 CAD
$25.03 CAD

Vendu en lots de : 1

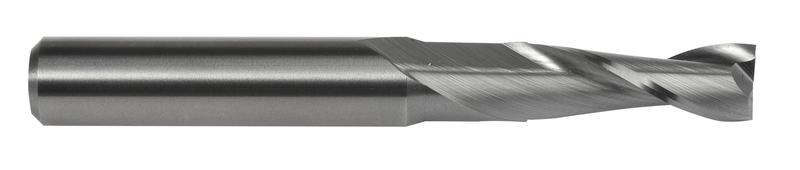

Fraise 2 dents coupe normale, diamètre 5mm, longueur de coupe 16mm, longueur totale 50mm, selon norme DORMER avec queue cylindrique 5mm, carbure monobloc, finition brillante, hélice 30° pour le fraisage de rainures dans les aciers et aciers moulés, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1095.0
GradeLumineux
Product Number7648563
Product FamilyS109
Insert Geometry
Depth of Cut Max — in (APMX)0.6299"
Depth of Cut Max — mm (APMX)16.0 mm
Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648563
EAN7320760846100
File Type Download
S1095.0 — Line Drawing PDF Download
