S1098.0
S1098.0

S1098.0

UGC DOR7648566
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$34.46 CAD - $34.46 CAD
$34.46 CAD
$34.46 CAD - $34.46 CAD
$34.46 CAD

Vendu en lots de : 1

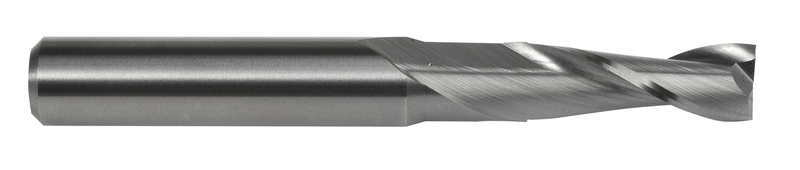

Fraise 2 dents de longueur normale, diamètre 8mm avec une longueur de coupe de 20mm et une longueur totale de 63mm, selon la norme DORMER, avec queue cylindrique de 8mm, en carbure monobloc avec finition brillante, hélice 30° pour le fraisage de rainures dans l'acier et l'acier moulé, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1098,0
GradeLumineux
Product Number7648566
Product FamilyS109
Insert Geometry
Depth of Cut Max — in (APMX)0.7874"
Depth of Cut Max — mm (APMX)20.0 mm
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648566
EAN7320760846131
File Type Download
S1098.0 — Line Drawing PDF Download
