S10910.0
S10910.0

S10910.0

UGC DOR7648568
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$49.69 CAD - $49.69 CAD
$49.69 CAD
$49.69 CAD - $49.69 CAD
$49.69 CAD

Vendu en lots de : 1

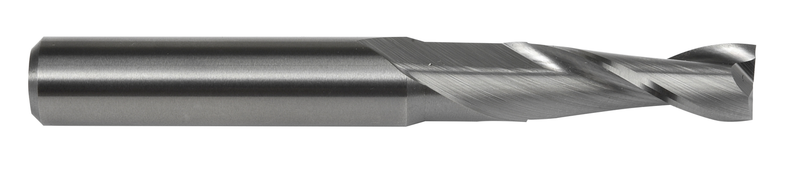

Fraise en bout de longueur standard avec 2 goujures, diamètre 10 mm avec une longueur de coupe de 22 mm et une longueur totale de 70 mm, selon la norme DORMER avec une queue cylindrique de 10 mm, en carbure monobloc avec finition brillante, hélice de 30° pour le fraisage de rainures dans l'acier et l'acier moulé, la fonte malléable, ductile et à graphite compacté, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S10910.0
GradeLumineux
Product Number7648568
Product FamilyS109
Insert Geometry
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648568
EAN7320760846155
File Type Download
S10910.0 — Line Drawing PDF Download
