S10912.0
S10912.0

S10912.0

UGC DOR7648570
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$68.19 CAD - $68.19 CAD
$68.19 CAD
$68.19 CAD - $68.19 CAD
$68.19 CAD

Vendu en lots de : 1

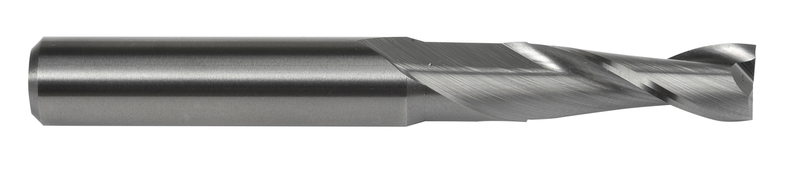

Fraise en bout standard à 2 dents, diamètre 12mm avec une longueur de coupe de 25mm et une longueur totale de 75mm, selon la norme DORMER avec une queue cylindrique de 12mm, en carbure monobloc avec une finition brillante, hélice de 30° pour le fraisage de rainures dans l'acier et l'acier moulé, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S10912.0
GradeLumineux
Product Number7648570
Product FamilyS109
Insert Geometry
Depth of Cut Max — in (APMX)0.9843"
Depth of Cut Max — mm (APMX)25.0 mm
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648570
EAN7320760846179
File Type Download

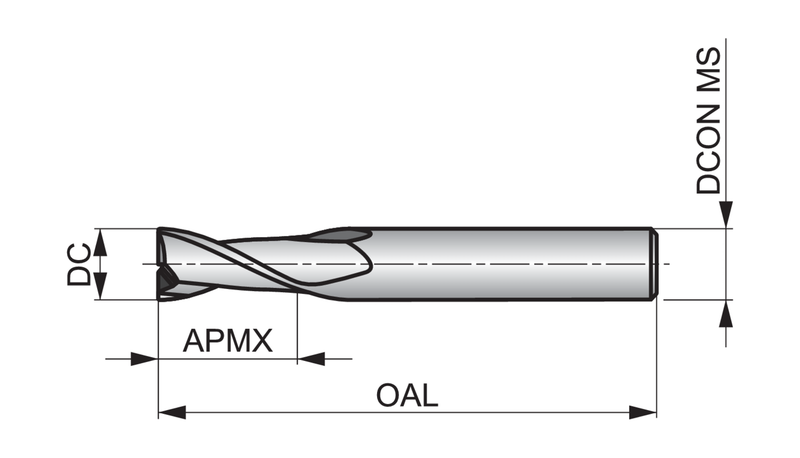

S10912.0 — Line Drawing PDF Download
