S10914.0
S10914.0

S10914.0

UGC DOR7648571
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$109.94 CAD - $109.94 CAD
$109.94 CAD
$109.94 CAD - $109.94 CAD
$109.94 CAD

Vendu en lots de : 1

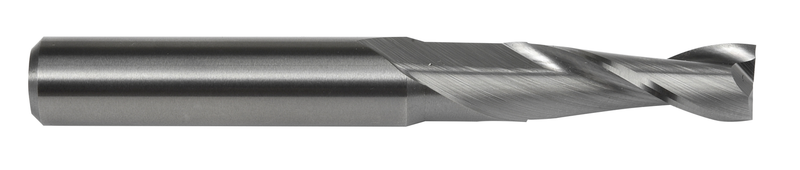

Fraise en bout longueur normale, 2 goujures, diamètre 14mm avec 30mm de longueur de coupe et 88mm de longueur totale, selon la norme DORMER avec une queue cylindrique de 14mm, en carbure monobloc finition brillante, hélice 30° pour le fraisage de rainures dans l'acier et l'acier moulé, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S10914.0
GradeLumineux
Product Number7648571
Product FamilyS109
Insert Geometry
Depth of Cut Max — in (APMX)1.1811"
Depth of Cut Max — mm (APMX)30.0 mm
Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)3.4646"
Overall Length — mm (OAL)88.0 mm
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648571
EAN7320760846186
File Type Download
S10914.0 — Line Drawing PDF Download
