S10916.0
S10916.0

S10916.0

UGC DOR7648572
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$139.54 CAD - $139.54 CAD
$139.54 CAD
$139.54 CAD - $139.54 CAD
$139.54 CAD

Vendu en lots de : 1

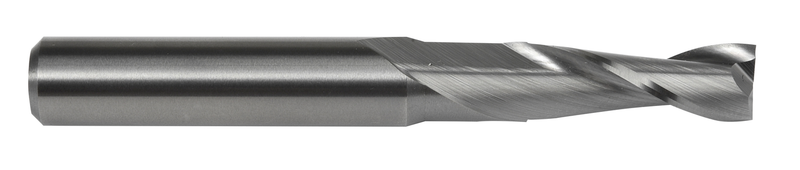

Fraise en bout longueur standard 2 dents, diamètre 16mm avec 32mm de longueur de coupe et 88mm de longueur totale, selon la norme DORMER avec une queue cylindrique de 16mm, carbure monobloc finition brillante, hélice 30° pour le fraisage de rainures dans l'acier et l'acier moulé, la fonte malléable, ductile et à graphite sphéroïdal et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S10916.0
GradeLumineux
Product Number7648572
Product FamilyS109
Insert Geometry
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)3.4646"
Overall Length — mm (OAL)88.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648572
EAN7320760846193
File Type Download
S10916.0 — Line Drawing PDF Download
