S10920.0
S10920.0

S10920.0

UGC DOR7648573
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$199.80 CAD - $199.80 CAD
$199.80 CAD
$199.80 CAD - $199.80 CAD
$199.80 CAD

Vendu en lots de : 1

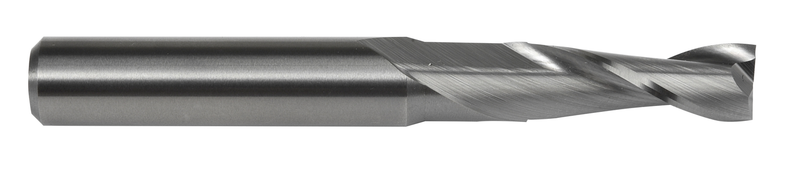

Fraise en bout de longueur normale, 2 dents, diamètre 20mm avec 38mm de longueur de coupe et 100mm de longueur totale, selon la norme DORMER avec une queue cylindrique de 20mm, carbure monobloc avec finition brillante, hélice 30° pour le fraisage de rainures dans l'acier et l'acier moulé, la fonte malléable, ductile et à graphite sphéroïdal et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S10920.0
GradeLumineux
Product Number7648573
Product FamilyS109
Insert Geometry
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm
Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648573
EAN7320760846209
File Type Download
S10920.0 — Line Drawing PDF Download
