S1101/4
S1101/4

S1101/4

UGC DOR7648577
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$39.27 CAD - $39.27 CAD
$39.27 CAD
$39.27 CAD - $39.27 CAD
$39.27 CAD

Vendu en lots de : 1

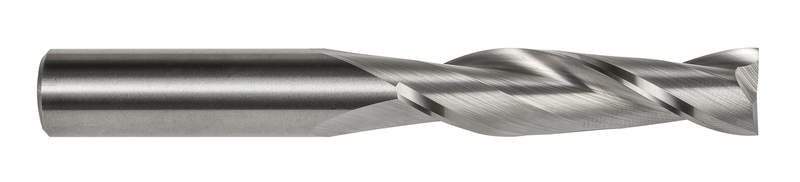

Fraise 2 tailles longue série, diamètre 1/4" avec une longueur de coupe de 1.1/8" et une longueur totale de 3", conforme aux normes DORMER avec une queue cylindrique de 1/4", en carbure monobloc avec une finition brillante, hélice à 30° pour le fraisage de rainures dans l'acier et l'acier moulé, les aciers inoxydables ferritiques, martensitiques et austénitiques, la fonte malléable, ductile et à graphite compacté, ainsi que le cuivre et les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1101/4
GradeLumineux
Product Number7648577
Product FamilyS110
Insert Geometry
Depth of Cut Max — mm (APMX)28.58 mm

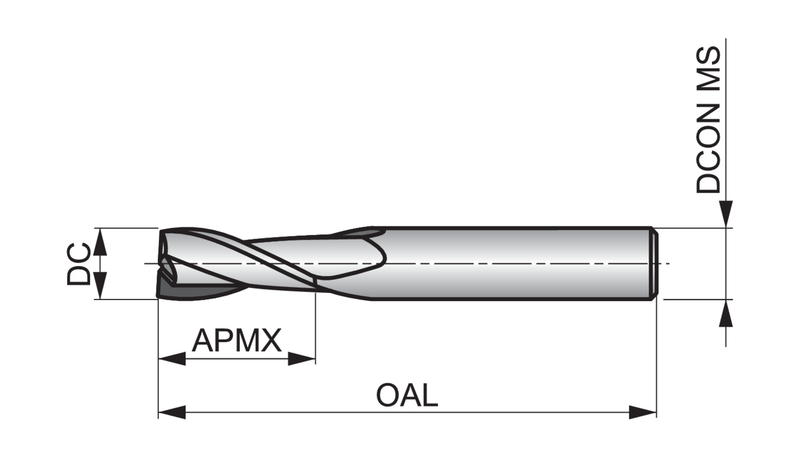

Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648577
EAN7320760846247
File Type Download
S1101/4 — Line Drawing PDF Download
