S1103/8
S1103/8

S1103/8

UGC DOR7648578
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$54.44 CAD - $54.44 CAD
$54.44 CAD
$54.44 CAD - $54.44 CAD
$54.44 CAD

Vendu en lots de : 1

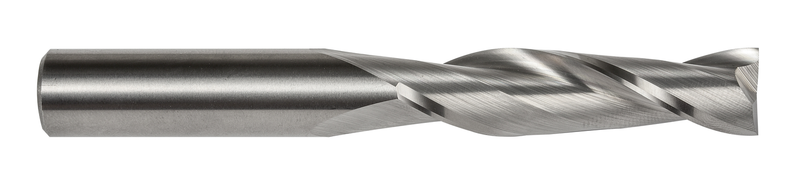

Fraise en bout série longue à 2 dents, diamètre 3/8" avec une longueur de coupe de 1,1/8" et une longueur totale de 3", selon la norme DORMER avec une queue cylindrique de 3/8", en carbure monobloc finition brillante, hélice à 30° pour le fraisage de rainures dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte malléable, ductile et à graphite sphéroïdal et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1103/8
GradeLumineux
Product Number7648578
Product FamilyS110
Insert Geometry

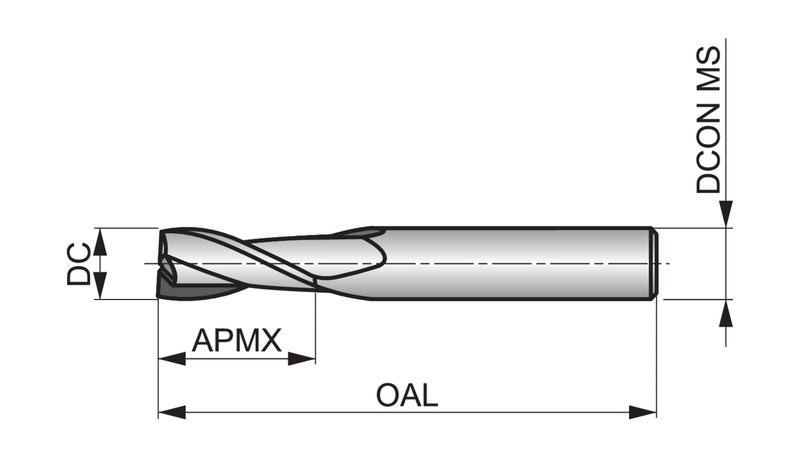

Depth of Cut Max — mm (APMX)28.58 mm
Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648578
EAN7320760846254
File Type Download
S1103/8 — Line Drawing PDF Download
