S1101/2
S1101/2

S1101/2

UGC DOR7648579
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$72.41 CAD - $72.41 CAD
$72.41 CAD
$72.41 CAD - $72.41 CAD
$72.41 CAD

Vendu en lots de : 1

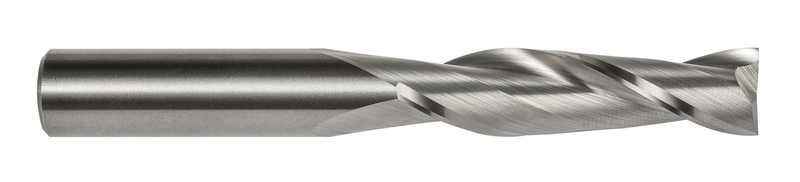

Fraise en bout série longue à 2 dents, diamètre 1/2" avec une longueur de coupe de 2" et une longueur totale de 4", selon la norme DORMER avec une queue cylindrique de 1/2", en carbure monobloc à finition brillante, hélice de 30° pour le fraisage de rainures dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte malléable, ductile et à graphite compacté ainsi que le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1101/2
GradeLumineux
Product Number7648579
Product FamilyS110
Insert Geometry
Depth of Cut Max — mm (APMX)50.8 mm
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)4.0"
Overall Length — mm (OAL)101.6 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648579
EAN7320760846261
File Type Download

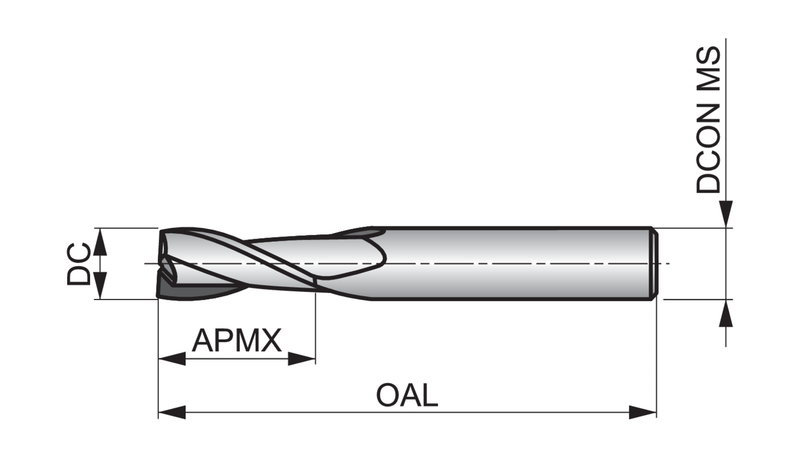

S1101/2 — Line Drawing PDF Download
