S1111/8
S1111/8

S1111/8

UGC DOR7648580
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.29 CAD - $31.29 CAD
$31.29 CAD
$31.29 CAD - $31.29 CAD
$31.29 CAD

Vendu en lots de : 1

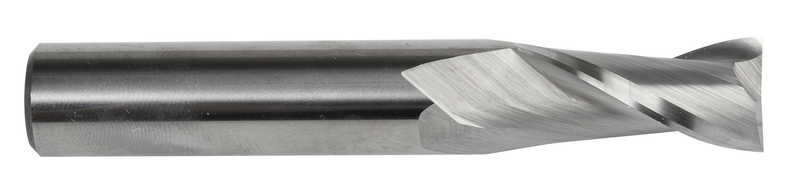

Fraise en bout série extra longue à 2 dents, diamètre 1/8" avec une longueur de coupe de 1" et une longueur totale de 3", conforme à la norme DORMER avec une queue cylindrique de 1/8", carbure monobloc avec finition brillante, hélice de 30° pour le fraisage de rainures dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1111/8
GradeLumineux
Product Number7648580
Product FamilyS111
Insert Geometry
Depth of Cut Max — mm (APMX)25.4 mm
Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648580
EAN7320760846278
File Type Download

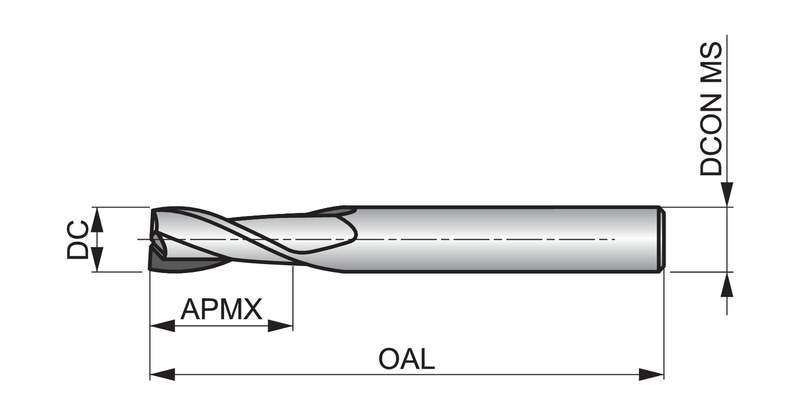

S1111/8 — Line Drawing PDF Download
