S2111/8
S2111/8

S2111/8

UGC DOR7648586
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$36.26 CAD - $36.26 CAD
$36.26 CAD
$36.26 CAD - $36.26 CAD
$36.26 CAD

Vendu en lots de : 1

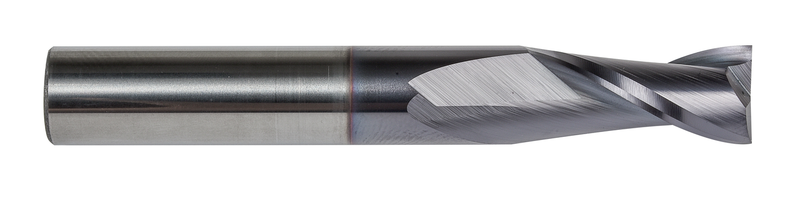

Fraise en bout série extra-longue à 2 dents, diamètre 1/8" avec 1" de longueur de coupe et 3" de longueur totale, selon la norme DORMER avec une queue cylindrique de 1/8", en carbure monobloc avec revêtement TiAlN, hélice 30° pour le fraisage de rainures dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2111/8
GradeTiAlN
Product Number7648586
Product FamilyS211
Insert Geometry
Depth of Cut Max — mm (APMX)25.4 mm
Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648586
EAN7320760846339
File Type Download

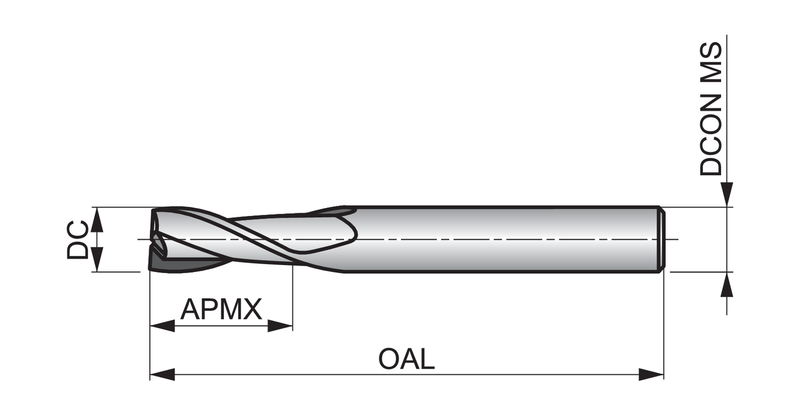

S2111/8 — Line Drawing PDF Download
