S2113/16
S2113/16

S2113/16

UGC DOR7648587
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$43.77 CAD - $43.77 CAD
$43.77 CAD
$43.77 CAD - $43.77 CAD
$43.77 CAD

Vendu en lots de : 1

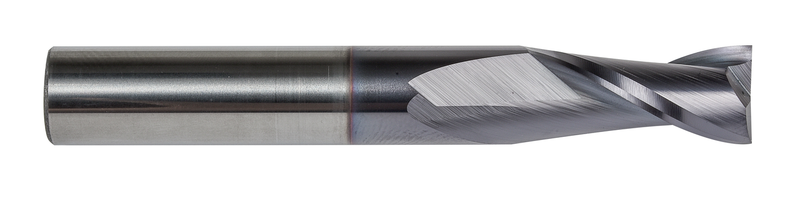

Fraise 2 tailles à queue cylindrique série extra-longue, diamètre 3/16" avec une longueur de coupe de 1.1/8" et une longueur totale de 3", conforme à la norme DORMER avec une queue cylindrique 3/16", en carbure monobloc avec revêtement TiAlN, hélice 30° pour le rainurage dans l'acier et l'acier moulé, les aciers inoxydables ferritiques, martensitiques et austénitiques et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2113/16
GradeTiAlN
Product Number7648587
Product FamilyS211
Insert Geometry
Depth of Cut Max — mm (APMX)28.58 mm
Dimensions
Cutting Diameter — in (DC)0.1875"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Connection Dia. — in (DCON)0.1875"
Connection Dia. — mm (DCON)4.76 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648587
EAN7320760846346
File Type Download

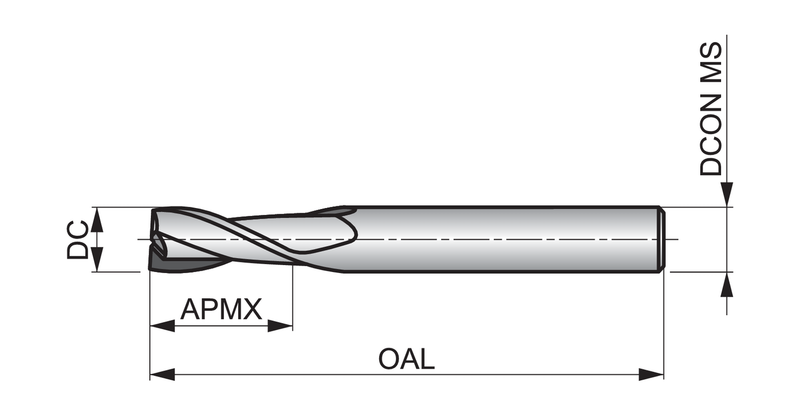

S2113/16 — Line Drawing PDF Download
