S1121/8
S1121/8

S1121/8

UGC DOR7648593
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.73 CAD - $17.73 CAD
$17.73 CAD
$17.73 CAD - $17.73 CAD
$17.73 CAD

Vendu en lots de : 1

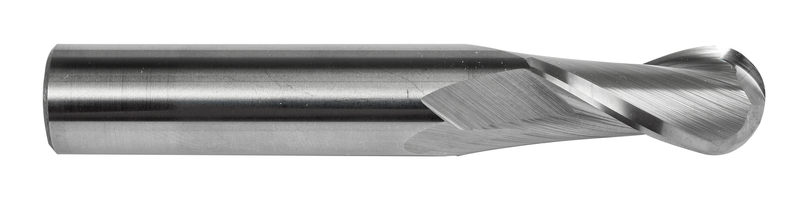

Fraise à l'hélice à bout sphérique de longueur normale avec 2 arêtes de coupe, diamètre de 1/8" avec longueur de coupe de 1/2", longueur totale de 1.1/2" et rayon de profil complet de 1/16", selon la norme DORMER avec une queue cylindrique de 1/8", carbure monobloc avec finition brillante, hélice à 30° pour le copiage dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1121/8
GradeLumineux
Product Number7648593
Product FamilyS112
Insert Geometry
Corner Radius — in (RE)0.063"
Depth of Cut Max — mm (APMX)12.7 mm
Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)1.5"
Overall Length — mm (OAL)38.1 mm
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648593
EAN7320760846407
File Type Download
S1121/8 — Line Drawing PDF Download
