S1123/16
S1123/16

S1123/16

UGC DOR7648595
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.41 CAD - $23.41 CAD
$23.41 CAD
$23.41 CAD - $23.41 CAD
$23.41 CAD

Vendu en lots de : 1

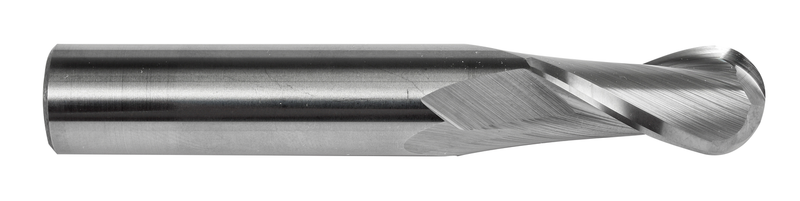

Fraise à l'extrémité sphérique de longueur standard, 2 dents, diamètre 3/16", longueur de coupe 5/8", longueur totale 2", rayon de profil complet 3/32", selon la norme DORMER avec une queue cylindrique 3/16", en carbure monobloc avec finition brillante, hélice à 30° pour le fraisage de profilage dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1123/16
GradeLumineux
Product Number7648595
Product FamilyS112

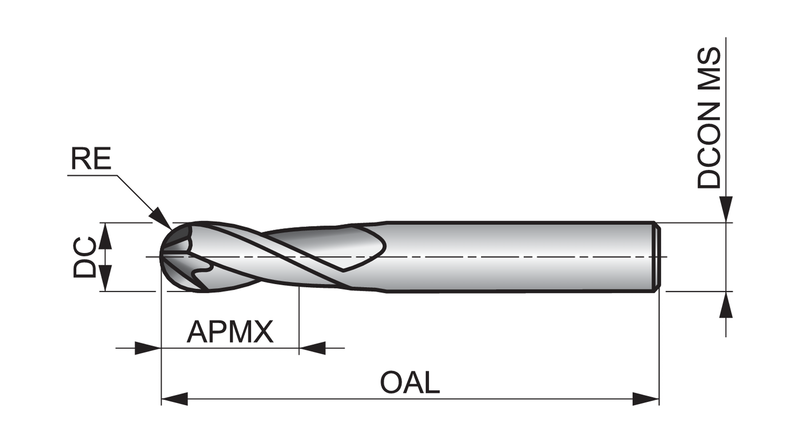

Insert Geometry
Corner Radius — in (RE)0.094"
Depth of Cut Max — mm (APMX)15.88 mm
Dimensions
Cutting Diameter — in (DC)0.1875"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Connection Dia. — in (DCON)0.1875"
Connection Dia. — mm (DCON)4.76 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648595
EAN7320760846421
File Type Download
S1123/16 — Line Drawing PDF Download
