S2127/32
S2127/32

S2127/32

UGC DOR7648604
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$41.76 CAD - $41.76 CAD
$41.76 CAD
$41.76 CAD - $41.76 CAD
$41.76 CAD

Vendu en lots de : 1

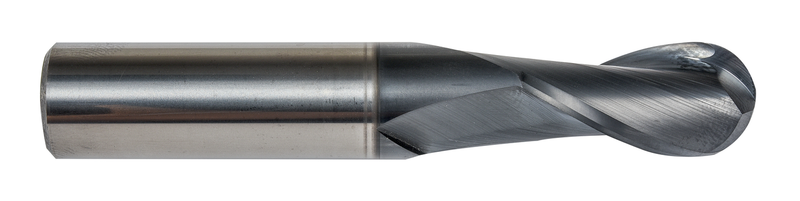

Fraise en bout hémisphérique longueur normale, à 2 dents, diamètre 7/32" avec longueur de coupe 5/8", longueur totale 2.1/2" et rayon de profil complet 7/64", selon la norme DORMER avec une queue cylindrique 1/4", en carbure monobloc avec revêtement TiAlN, hélice à 30° pour le fraisage en plongée dans l'acier et l'acier moulé, l'acier inoxydable et la fonte malléable, ductile et à graphite compacté

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2127/32
GradeTiAlN
Product Number7648604
Product FamilyS212
Insert Geometry
Corner Radius — in (RE)0.109"
Depth of Cut Max — mm (APMX)15.88 mm
Dimensions
Cutting Diameter — in (DC)0.2188"
Cutting Diameter — mm (DC)5.56 mm
Cutting Diameter — Fractional7/32
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648604
EAN7320760846513
File Type Download
S2127/32 — Line Drawing PDF Download
