S2121/4
S2121/4

S2121/4

UGC DOR7648605
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$39.01 CAD - $39.01 CAD
$39.01 CAD
$39.01 CAD - $39.01 CAD
$39.01 CAD

Vendu en lots de : 1

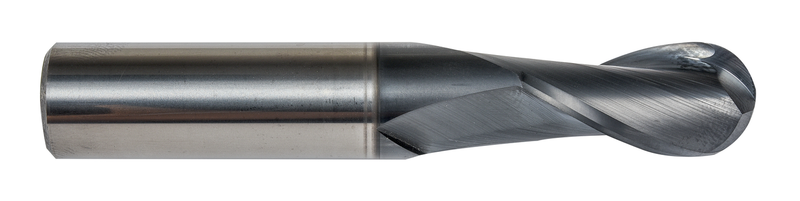

Fraise carbure monobloc à rayon de bout sphérique et à queue cylindrique, à 2 dents, diamètre de 1/4" avec 3/4" de longueur de coupe, longueur totale de 2.1/2" et rayon de 1/8" conforme à la norme DORMER, revêtement TiAlN, hélice de 30° pour le copiage dans l'acier, l'acier moulé, l'acier inoxydable et la fonte à graphite sphéroïdal, malléable et compacté

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2121/4
GradeTiAlN
Product Number7648605
Product FamilyS212
Insert Geometry
Corner Radius — in (RE)0.125"
Depth of Cut Max — mm (APMX)19.05 mm
Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648605
EAN7320760846520
File Type Download
S2121/4 — Line Drawing PDF Download
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
