S2123/8
S2123/8

S2123/8

UGC DOR7648607
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$61.31 CAD - $61.31 CAD
$61.31 CAD
$61.31 CAD - $61.31 CAD
$61.31 CAD

Vendu en lots de : 1

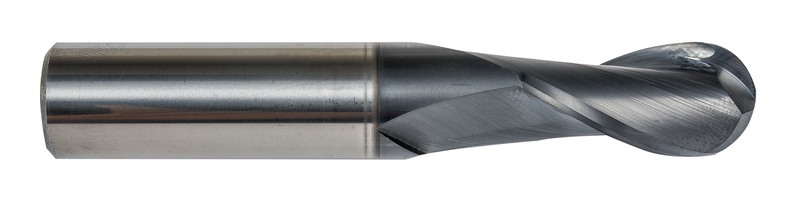

Fraise boule queue cylindrique standard, 2 dents, diamètre 3/8" avec longueur de coupe 7/8", longueur totale 2.1/2" et rayon plein profil 3/16", selon la norme DORMER avec une queue cylindrique 3/8", carbure monobloc avec revêtement TiAlN, hélice 30° pour le fraisage de reproduction dans l'acier et l'acier moulé, l'acier inoxydable et la fonte malléable, ductile et à graphite compacté

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2123/8
GradeTiAlN
Product Number7648607
Product FamilyS212
Insert Geometry
Corner Radius — in (RE)0.188"
Depth of Cut Max — mm (APMX)22.23 mm
Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648607
EAN7320760846544
File Type Download
S2123/8 — Line Drawing PDF Download
