S2121/2
S2121/2

S2121/2

UGC DOR7648608
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$104.66 CAD - $104.66 CAD
$104.66 CAD
$104.66 CAD - $104.66 CAD
$104.66 CAD

Vendu en lots de : 1

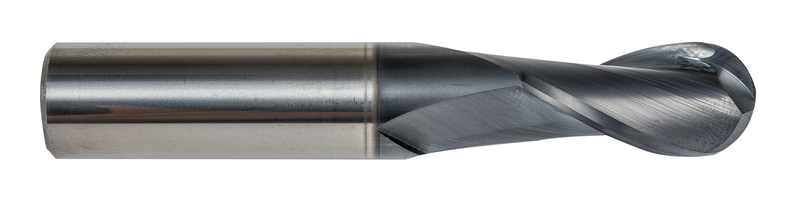

Fraise à l'extrémité sphérique de longueur standard, 2 dents, diamètre 1/2" avec longueur de coupe de 1", longueur totale de 3" et rayon de profil complet de 1/4", conforme à la norme DORMER avec une queue cylindrique de 1/2", en carbure monobloc avec revêtement TiAlN, hélice à 30° pour le copiage dans l'acier et l'acier moulé, l'acier inoxydable et la fonte malléable, ductile et à graphite compacté

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2121/2
GradeTiAlN
Product Number7648608
Product FamilyS212
Insert Geometry
Corner Radius — in (RE)0.25"
Depth of Cut Max — mm (APMX)25.4 mm
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648608
EAN7320760846551
File Type Download
S2121/2 — Line Drawing PDF Download
