S1132.0
S1132.0

S1132.0

UGC DOR7648609
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.46 CAD - $21.46 CAD
$21.46 CAD
$21.46 CAD - $21.46 CAD
$21.46 CAD

Vendu en lots de : 1

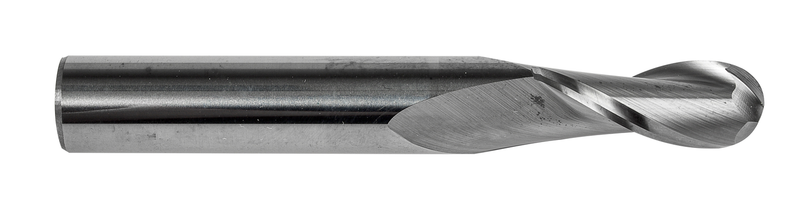

Fraise en bout hémisphérique longueur normale, 2 dents, diamètre 2 mm, longueur de coupe 6 mm, longueur totale 38 mm et rayon de profil complet 1 mm, selon la norme DORMER avec une queue cylindrique de 3 mm, carbure monobloc avec finition brillante, hélice 30° pour le fraisage en plongée dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1132.0
GradeLumineux
Product Number7648609
Product FamilyS113
Insert Geometry
Corner Radius — in (RE)0.039"
Corner Radius — mm (RE)1 mm
Depth of Cut Max — in (APMX)0.2362"
Depth of Cut Max — mm (APMX)6.0 mm
Dimensions
Cutting Diameter — in (DC)0.0787"
Cutting Diameter — mm (DC)2.0 mm
Overall Length — in (OAL)1.4961"
Overall Length — mm (OAL)38.0 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648609
EAN7320760846568
File Type Download
S1132.0 — Line Drawing PDF Download
