S1132.5
S1132.5

S1132.5

UGC DOR7648610
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.59 CAD - $19.59 CAD
$19.59 CAD
$19.59 CAD - $19.59 CAD
$19.59 CAD

Vendu en lots de : 1

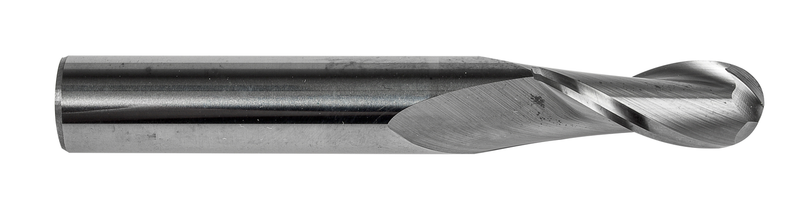

Fraise deux tailles à bout hémisphérique longueur normale, diamètre 2,5mm, longueur de coupe 6mm, longueur totale 38mm et rayon de profil complet de 1,25mm, selon la norme DORMER avec une queue cylindrique de 3mm, carbure monobloc avec finition brillante, hélice à 30° pour le copiage dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1132.5
GradeLumineux
Product Number7648610
Product FamilyS113
Insert Geometry
Corner Radius — in (RE)0.049"
Corner Radius — mm (RE)1.25 mm
Depth of Cut Max — in (APMX)0.2362"
Depth of Cut Max — mm (APMX)6.0 mm
Dimensions
Cutting Diameter — in (DC)0.0984"
Cutting Diameter — mm (DC)2.5 mm
Overall Length — in (OAL)1.4961"
Overall Length — mm (OAL)38.0 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648610
EAN7320760846575
File Type Download
S1132.5 — Line Drawing PDF Download
