S1133.0
S1133.0

S1133.0

UGC DOR7648611
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.69 CAD - $18.69 CAD
$18.69 CAD
$18.69 CAD - $18.69 CAD
$18.69 CAD

Vendu en lots de : 1

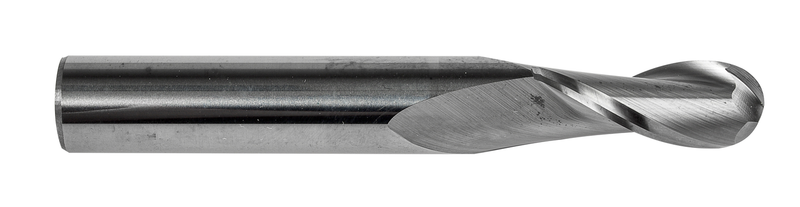

Fraise à l'hélice régulière à bout sphérique, 2 goujures, diamètre 3mm avec une longueur de coupe de 12mm, longueur totale de 38mm et rayon de profil complet de 1.5mm, selon la norme DORMER avec une queue cylindrique de 3mm, carbure monobloc avec finition brillante, hélice de 30° pour le fraisage en copie dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1133.0
GradeLumineux
Product Number7648611
Product FamilyS113
Insert Geometry
Corner Radius — in (RE)0.059"
Corner Radius — mm (RE)1.5 mm
Depth of Cut Max — in (APMX)0.4724"
Depth of Cut Max — mm (APMX)12.0 mm
Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.4961"
Overall Length — mm (OAL)38.0 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648611
EAN7320760846582
File Type Download
S1133.0 — Line Drawing PDF Download
