S1134.0
S1134.0

S1134.0

UGC DOR7648612
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.53 CAD - $24.53 CAD
$24.53 CAD
$24.53 CAD - $24.53 CAD
$24.53 CAD

Vendu en lots de : 1

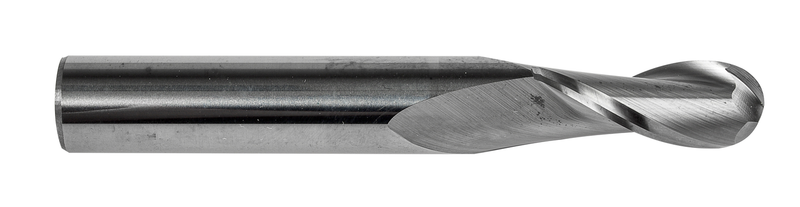

Fraise en bout à nez sphérique de longueur normale avec 2 arêtes de coupe, diamètre 4 mm avec 14 mm de longueur de coupe, 50 mm de longueur totale et 2 mm de rayon de profil complet, selon la norme DORMER avec une tige cylindrique de 4 mm, en carbure monobloc avec finition brillante, hélice de 30° pour le fraisage en plongée dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, la fonte ductile et la fonte à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1134.0
GradeLumineux
Product Number7648612
Product FamilyS113
Insert Geometry
Corner Radius — in (RE)0.079"
Corner Radius — mm (RE)2 mm
Depth of Cut Max — in (APMX)0.5512"
Depth of Cut Max — mm (APMX)14.0 mm
Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648612
EAN7320760846599
File Type Download
S1134.0 — Line Drawing PDF Download
