S1136.0
S1136.0

S1136.0

UGC DOR7648614
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.56 CAD - $30.56 CAD
$30.56 CAD
$30.56 CAD - $30.56 CAD
$30.56 CAD

Vendu en lots de : 1

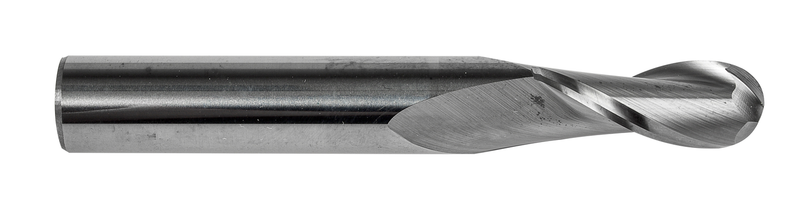

Fraise boule de longueur standard, 2 dents, diamètre 6 mm avec une longueur de coupe de 19 mm, longueur totale de 63 mm et rayon de profil complet de 3 mm, conforme à la norme DORMER avec une queue cylindrique de 6 mm, en carbure monobloc avec finition brillante, hélice de 30° pour le fraisage en copie dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté, et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1136.0
GradeLumineux
Product Number7648614
Product FamilyS113
Insert Geometry
Corner Radius — in (RE)0.118"
Corner Radius — mm (RE)3 mm
Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648614
EAN7320760846612
File Type Download
S1136.0 — Line Drawing PDF Download
