S1137.0
S1137.0

S1137.0

UGC DOR7648615
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$42.39 CAD - $42.39 CAD
$42.39 CAD
$42.39 CAD - $42.39 CAD
$42.39 CAD

Vendu en lots de : 1

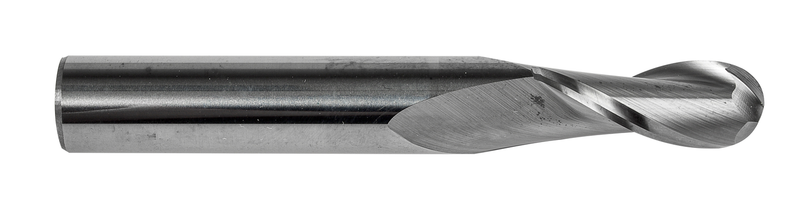

Fraise hémisphérique de longueur normale à 2 arêtes, diamètre de 7 mm avec une longueur de coupe de 19 mm, longueur totale de 63 mm et rayon de profil complet de 3,5 mm, selon la norme DORMER avec une queue cylindrique de 8 mm, en carbure monobloc avec finition brillante, hélice de 30° pour le fraisage de copiage dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté, ainsi que le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1137.0
GradeLumineux
Product Number7648615
Product FamilyS113
Insert Geometry
Corner Radius — in (RE)0.138"
Corner Radius — mm (RE)3.5 mm
Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm
Dimensions
Cutting Diameter — in (DC)0.2756"
Cutting Diameter — mm (DC)7.0 mm
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648615
EAN7320760846629
File Type Download
S1137.0 — Line Drawing PDF Download
