S1139.0
S1139.0

S1139.0

UGC DOR7648617
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$52.86 CAD - $52.86 CAD
$52.86 CAD
$52.86 CAD - $52.86 CAD
$52.86 CAD

Vendu en lots de : 1

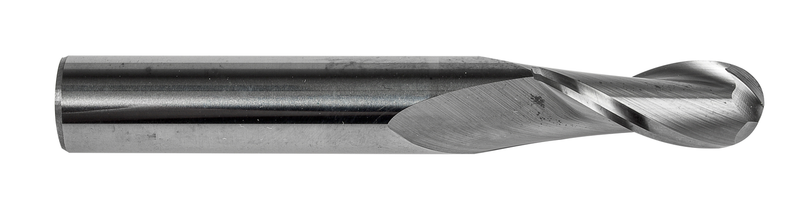

Fraise à lamer à bout sphérique de longueur standard, 2 dents, diamètre 9 mm avec une longueur de coupe de 22 mm, longueur totale 70 mm et rayon de profil complet de 4,5 mm, selon la norme DORMER avec une queue cylindrique de 10 mm, en carbure monobloc avec finition brillante, hélice à 30° pour le fraisage en copie dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté ainsi que le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1139.0
GradeLumineux
Product Number7648617
Product FamilyS113

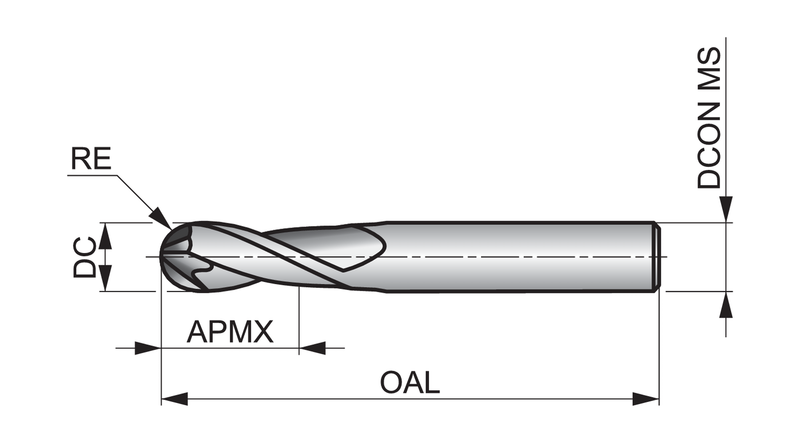

Insert Geometry
Corner Radius — in (RE)0.177"
Corner Radius — mm (RE)4.5 mm
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm
Dimensions
Cutting Diameter — in (DC)0.3543"
Cutting Diameter — mm (DC)9.0 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648617
EAN7320760846643
File Type Download
S1139.0 — Line Drawing PDF Download
