S11310.0
S11310.0

S11310.0

UGC DOR7648618
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$57.61 CAD - $57.61 CAD
$57.61 CAD
$57.61 CAD - $57.61 CAD
$57.61 CAD

Vendu en lots de : 1

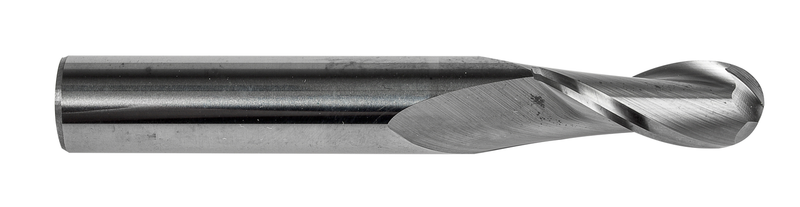

Fraise à l'hélice à bout sphérique de longueur standard, à 2 dents, de diamètre 10mm, longueur de coupe 22mm, longueur totale 70mm, et rayon de profil complet 5mm, selon la norme DORMER avec une queue cylindrique 10mm, en carbure monobloc, finition brillante, hélice à 30° pour le fraisage de forme dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S11310.0
GradeLumineux
Product Number7648618
Product FamilyS113
Insert Geometry
Corner Radius — in (RE)0.197"
Corner Radius — mm (RE)5 mm
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648618
EAN7320760846650
File Type Download
S11310.0 — Line Drawing PDF Download
